Examples

Example 1.
10 points were selected at the interval from 0 to Mission time 3. The input parameters and the calculated result is the following.
Output:
Calculation #1. Tue Feb 09 13:15:12 EST 2016

Weibull shape parameter beta=2.0; Scale parameter eta=1.0; Mean time to repair 0.2
Kijima model 1 with restoration factor q=0.5
Number of Monte Carlo trials is 20000

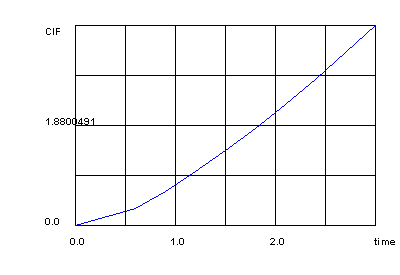

Cumulative intensity function (CIF).

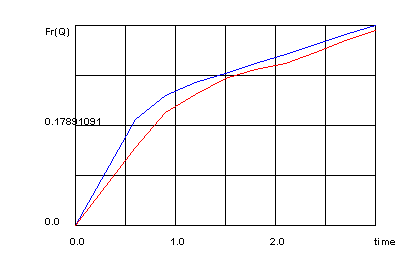

Frequency of failure (Fr) multiplied by repair time and Unavailability (Q).

TimeCIFCIF errorFrFr errorQQ error
0.3 0.086699426 3.249022E-5 0.5582692 4.0466088E-4 0.055433072 1.537859E-4
0.6 0.3174962 3.0207858E-4 0.94762594 0.001751294 0.13947669 6.0107565E-4
0.9 0.63737 9.6213375E-4 1.1616311 0.0033619222 0.20088041 0.001155815
1.2 1.0044826 0.001931194 1.2746892 0.004537767 0.23429966 0.0016327527
1.5 1.400327 0.0029925222 1.3587587 0.00525525 0.26144373 0.0020291908
1.8 1.821017 0.0040007 1.4474322 0.005837646 0.27823642 0.002198344
2.1 2.2675443 0.0049215825 1.5265654 0.00635647 0.2897335 0.0022590517
2.4 2.739437 0.00576752 1.6116774 0.007007124 0.3083013 0.0023615274
2.7 3.2372327 0.006599446 1.6998075 0.007668886 0.32999527 0.0024354819
3.0 3.7600982 0.0074221278 1.7891091 0.008153477 0.34797904 0.0024798708
