Output:

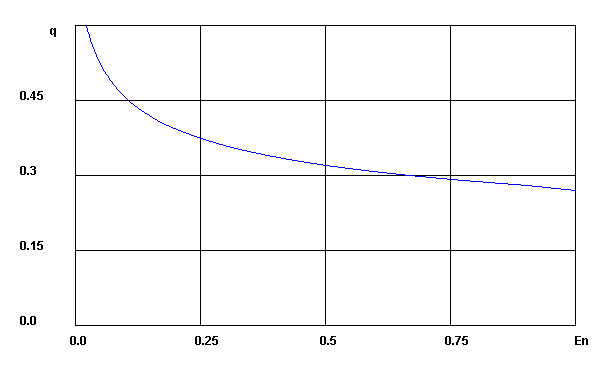

Energy barrier diagram.

The shell parameter lambda is 11.497029

KDF corresponding to qL is 0.34975365 with energy barrier 0.33944434

KDF corresponding to qD is 0.27980292 with energy barrier 0.90783316

KDF corresponding to qDI is 0.2207075 with energy barrier 2.5148544

Pressure q	Deflection w	Energy barrier En	Force maxQ
0.6	1.1950448	0.02333395	0.09844342
0.575	1.2831006	0.030083736	0.10867252
0.55	1.3774463	0.038702857	0.11930019
0.525	1.4780816	0.04976858	0.13033268
0.5	1.5891998	0.064080335	0.14178148
0.475	1.7108009	0.082765594	0.1536639
0.45	1.8470778	0.10745187	0.166004
0.425	2.002224	0.14054483	0.17886406
0.4	2.182529	0.18569528	0.19231108
0.375	2.3942826	0.24859664	0.2064347
0.35	2.6521606	0.33838263	0.22135189
0.325	2.9666462	0.47008598	0.23717491
0.3	3.3608012	0.6690503	0.2539434
0.275	3.8618813	0.97895515	0.27153927
0.25	4.511818	1.4777846	0.28969195
0.225	5.3672185	2.316816	0.30854177
0.2	6.547587	3.8373122	0.3302205
0.175	8.279354	6.9350767	0.3602728
0.15	11.021667	14.219287	0.4066283
0.125	15.648796	34.211384	0.4773834
0.1	23.997337	99.87158	0.5804504
